gridpack::dynamic_simulation_r::DSAppModule Class Reference

#include <ds_app_module.hpp>

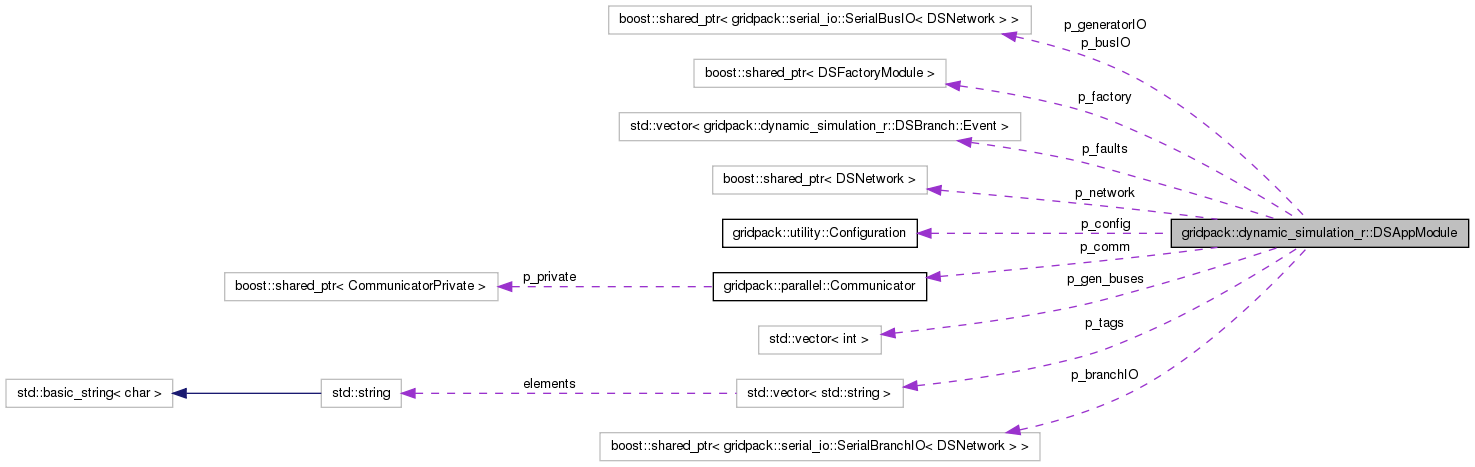

Collaboration diagram for gridpack::dynamic_simulation_r::DSAppModule:

[legend]

List of all members.

Public Member Functions
	DSAppModule (void)
	~DSAppModule (void)
void	readNetwork (boost::shared_ptr< DSNetwork > &network, gridpack::utility::Configuration *config)
void	setNetwork (boost::shared_ptr< DSNetwork > &network, gridpack::utility::Configuration *config)
void	readGenerators (void)
void	initialize ()
void	solve (gridpack::dynamic_simulation_r::DSBranch::Event fault)
void	write ()
std::vector < gridpack::dynamic_simulation_r::DSBranch::Event >	getFaults (gridpack::utility::Configuration::CursorPtr cursor)
void	setGeneratorWatch ()

---

Constructor & Destructor Documentation

gridpack::dynamic_simulation_r::DSAppModule::DSAppModule

(

void

)

Basic constructor

gridpack::dynamic_simulation_r::DSAppModule::~DSAppModule

(

void

)

Basic destructor

---

Member Function Documentation

std::vector<gridpack::dynamic_simulation_r::DSBranch::Event> gridpack::dynamic_simulation_r::DSAppModule::getFaults

(

gridpack::utility::Configuration::CursorPtr

cursor

)

Read faults from external file and form a list of faults

Parameters:

cursor

pointer to open file contain fault or faults

Returns:

a list of fault events

void gridpack::dynamic_simulation_r::DSAppModule::initialize

(

)

Set up exchange buffers and other internal parameters and initialize network components using data from data collection

void gridpack::dynamic_simulation_r::DSAppModule::readGenerators

(

void

)

Read generator parameters. These will come from a separate file (most likely). The name of this file comes from the input configuration file.

void gridpack::dynamic_simulation_r::DSAppModule::readNetwork	(	boost::shared_ptr< DSNetwork > &	network,
		gridpack::utility::Configuration *	config
	)

Read in and partition the powerflow network. The input file is read directly from the Dynamic_simulation block in the configuration file so no external file names or parameters need to be passed to this routine

Parameters:

	network	pointer to a DSNetwork object. This should not have any buses or branches defined on it.
	config	pointer to open configuration file

void gridpack::dynamic_simulation_r::DSAppModule::setGeneratorWatch

(

)

Read in generators that should be monitored during simulation

void gridpack::dynamic_simulation_r::DSAppModule::setNetwork	(	boost::shared_ptr< DSNetwork > &	network,
		gridpack::utility::Configuration *	config
	)

Assume that DSNetwork already exists and just cache an internal pointer to it. This routine does not call the partition function. Also read in simulation parameters from configuration file

Parameters:

	network	pointer to a complete DSNetwork object.
	config	pointer to open configuration file

void gridpack::dynamic_simulation_r::DSAppModule::solve

(

gridpack::dynamic_simulation_r::DSBranch::Event

fault

)

Execute the time integration portion of the application

void gridpack::dynamic_simulation_r::DSAppModule::write

(

)

Write out final results of dynamic simulation calculation to standard output

---

The documentation for this class was generated from the following file:

• ds_app_module.hpp
